Confidential Asset (CA)

The Confidential Asset Standard (also known as “Confidential Asset” or “CA”) is a privacy-focused protocol for managing Fungible Assets (FA). It allows users to perform transactions with hidden FA amounts while keeping sender and recipient addresses publicly visible.

This standard allows any FA to be wrapped into a corresponding Confidential Asset, ensuring compatibility with existing tokens. It supports 64-bit transfers, and balances of up to 128 bits.

Operations on Confidential Asset balances (confidential balances), require zero-knowledge proofs (ZKPs) to verify transaction correctness without revealing hidden amounts and other sensitive data.

Note

Interacting directly with Confidential Asset’s smart contracts is highly complex. Developers are encouraged to use the TypeScript SDK, with full documentation available here. The SDK handles ZKP generation, balance decryption, and transaction construction.

Note

This documentation explains the contract’s operations and offers insights into the protocol core processes. Cryptographic and mathematical details are explained superficially.

Confidential Store

For every confidential asset a user registers, they generate a unique keypair:

• An encryption key (EK) stored on-chain.
• A decryption key (DK) kept securely by the user.

These keys are standalone and should not be confused with the user’s Aptos account keys.

Each confidential balance is split into two parts:

• pending_balance - accumulates all incoming transactions.
• available_balance - used exclusively for outgoing transactions.

Both balances are encrypted with the same user’s EK, ensuring underlying amounts remain private.

Note

This separation protects against “front-running” attacks. Specifically, if there was a single balance, an attacker could revert a user’s transaction by sending a small payment, altering the balance and, consequently, invalidating the user’s ZKP.

The confidential balance, encryption key, and related state are stored in the ConfidentialStore resource. The ConfidentialStore is instantiated for each confidential asset the user has and managed by the confidential_asset module:

enum ConfidentialStore has key {
    V1 {
        pause_incoming: bool,
        normalized: bool,
        transfers_received: u64,
        pending_balance: CompressedPendingBalance,
        available_balance: CompressedAvailableBalance,
        ek: CompressedRistretto,
    }
}

Confidential Balance

Confidential balances handle token amounts by splitting them into smaller units called chunks. Each chunk represents a portion of the total amount and is encrypted individually using the user’s EK. Each encrypted chunk consists of two curve points (P, R) forming a Twisted ElGamal ciphertext.

Chunks

The pending balance consists of four chunks that hold all incoming transfers. It can handle up to 2^16 64-bit transfers before requiring a rollover to the available balance. During this accumulation, the pending balance chunks can grow up to 32 bits each.

The available balance consists of eight chunks, supporting 128-bit values. After any operation the available balance should be normalized back to 16-bit chunks to maintain efficient decryption.

The CompressedPendingBalance and CompressedAvailableBalance structs represent these two balance types:

struct CompressedPendingBalance has store, drop, copy {
    P: vector<CompressedRistretto>,
    R: vector<CompressedRistretto>,
}

struct CompressedAvailableBalance has store, drop, copy {
    P: vector<CompressedRistretto>,
    R: vector<CompressedRistretto>,
    R_aud: vector<CompressedRistretto>,
}

Note

The R_aud field in the available balance stores the auditor’s R components, enabling the effective auditor (if one is configured) to decrypt the user’s available balance.

Encryption and Decryption

Encryption involves:

• Splitting the total amount into 16-bit chunks.
• Applying the user’s EK to encrypt each chunk individually as a Twisted ElGamal ciphertext (P, R).

Decryption involves:

• Applying the user’s DK to decrypt each chunk.
• Solving a discrete logarithm (DL) problem for each chunk to recover the original values.
• Combining the recovered values to reconstruct the total amount.

Normalization

Normalization ensures chunks are always reduced to manageable sizes (16 bits). Without normalization, chunks can grow too large, making the decryption process (solving DL) significantly slower or even impractical. This mechanism is automatically applied to the available balance after each transfer or withdrawal, ensuring that users can always decrypt their balances, even as balances grow through multiple transactions. Only after a rollover, users are required to normalize the available balance manually.

Homomorphic Encryption

The protocol utilizes Homomorphic encryption, allowing arithmetic operations on confidential balances without their decryption. This capability is essential for updating the receiver’s pending balance during transfers and for rollovers, where the user’s pending balance is added to the available one.

Architecture

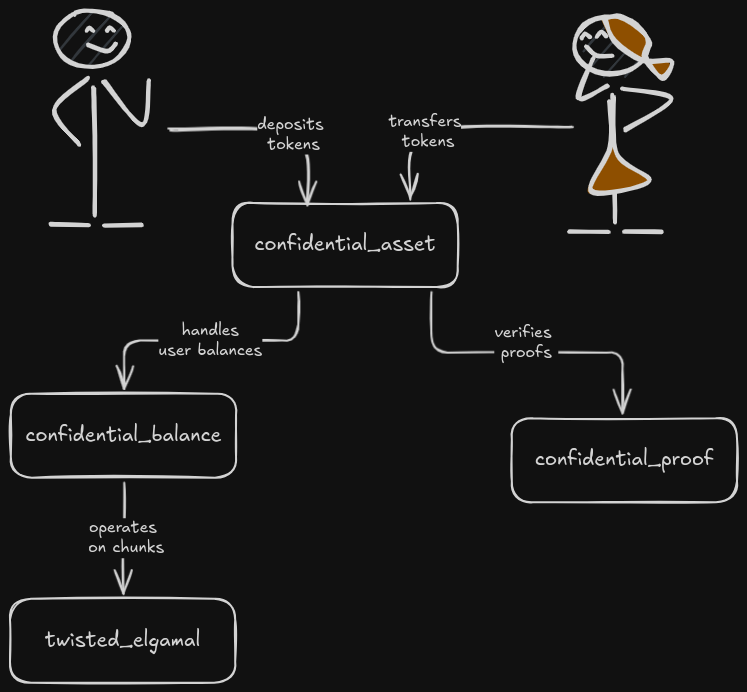

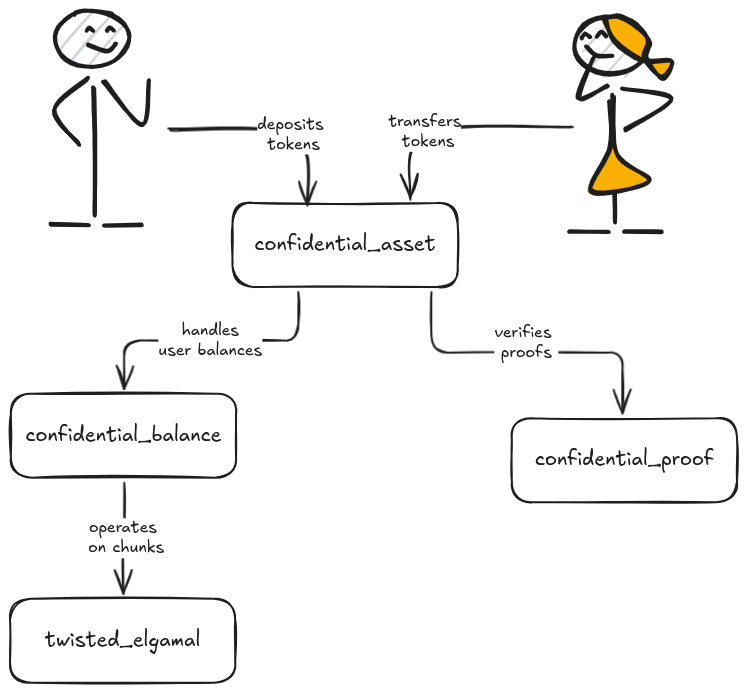

The diagram below shows the relationship between Confidential Asset modules:

Users interact with the confidential_asset module to perform operations on their confidential balances. The confidential_asset module uses separate modules for each type of balance (confidential_pending_balance, confidential_available_balance, confidential_amount), along with sigma protocol modules for ZKP verification and confidential_range_proofs for range proof verification. Under the hood, the ristretto255_twisted_elgamal module provides Twisted ElGamal encryption primitives.

Entry Functions

Note

Entry functions with the _raw suffix accept serialized cryptographic data as vector<u8> or vector<vector<u8>>. ZKP generation and data serialization are handled by the TypeScript SDK.

Register

public entry fun register_raw(
    sender: &signer,
    asset_type: Object<Metadata>,
    ek: vector<u8>,
    sigma_proto_comm: vector<vector<u8>>,
    sigma_proto_resp: vector<vector<u8>>
)

Users must register a ConfidentialStore for each asset type they intend to transact with. As part of this process, users generate a keypair (EK and DK) on their end and submit a sigma protocol proof (proving knowledge of the DK corresponding to the given EK).

When a ConfidentialStore is first registered, the confidential balance is set to zero, represented as zero ciphertexts for both the pending_balance and available_balance.

Note

Although it is recommended to generate a unique keypair for each asset type to enhance security, it’s not restricted to reuse the same encryption key across multiple assets if preferred.

Caution

This operation is expensive as it initializes a new storage and storage fees far exceed execution fees. However, users call it only once per asset type.

Deposit

public entry fun deposit(
    depositor: &signer,
    asset_type: Object<Metadata>,
    amount: u64
)

The deposit function brings tokens into the protocol, transferring the passed amount from the primary FA store of the depositor to their own pending balance.

The amount in this function is publicly visible, as adding new tokens to the protocol requires a normal transfer. However, tokens within the protocol become obfuscated through confidential transfers, ensuring privacy in subsequent transactions.

Note

If you want to have a hidden amount from the beginning, use the confidential_transfer_raw function instead.

Rollover Pending Balance

public entry fun rollover_pending_balance(
    sender: &signer,
    asset_type: Object<Metadata>
)

public entry fun rollover_pending_balance_and_pause(
    sender: &signer,
    asset_type: Object<Metadata>
)

The rollover_pending_balance function adds the pending balance to the available one, resetting the pending balance to zero. It works with no additional proofs as this function utilizes properties of the Homomorphic encryption used in the protocol.

The rollover_pending_balance_and_pause variant additionally pauses incoming transfers after the rollover, which is useful when preparing for a key rotation.

Note

You cannot spend money from the pending balance directly. It must be rolled over to the available balance first.

Caution

The available balance must be normalized before performing a rollover. If it is not normalized, you can use the normalize_raw function to do so.

Caution

Calling the rollover_pending_balance function in a separate transaction is crucial for preventing “front-running” attacks.

Confidential Transfer

public entry fun confidential_transfer_raw(
    sender: &signer,
    asset_type: Object<Metadata>,
    to: address,
    new_balance_P: vector<vector<u8>>,
    new_balance_R: vector<vector<u8>>,
    new_balance_R_eff_aud: vector<vector<u8>>,
    amount_P: vector<vector<u8>>,
    amount_R_sender: vector<vector<u8>>,
    amount_R_recip: vector<vector<u8>>,
    amount_R_eff_aud: vector<vector<u8>>,
    ek_volun_auds: vector<vector<u8>>,
    amount_R_volun_auds: vector<vector<vector<u8>>>,
    zkrp_new_balance: vector<u8>,
    zkrp_amount: vector<u8>,
    sigma_proto_comm: vector<vector<u8>>,
    sigma_proto_resp: vector<vector<u8>>
)

The confidential_transfer_raw function transfers tokens from the sender’s available balance to the recipient’s pending balance. The sender encrypts the transferred amount under the recipient’s encryption key, enabling the recipient’s confidential balance to be updated homomorphically.

The transfer amount is also encrypted under the sender’s key (for the sender’s records) and under any auditor keys.

The function requires:

• New balance ciphertexts (new_balance_P, new_balance_R, new_balance_R_eff_aud): the sender’s updated available balance after the transfer.
• Amount ciphertexts (amount_P, amount_R_sender, amount_R_recip, amount_R_eff_aud): the transfer amount encrypted under the sender’s, recipient’s, and auditor’s keys.
• Voluntary auditor keys and ciphertexts (ek_volun_auds, amount_R_volun_auds): optional additional auditor encryption keys and amount ciphertexts.
• Range proofs (zkrp_new_balance, zkrp_amount): proving the new balance and transfer amount are non-negative and within range.
• Sigma protocol proof (sigma_proto_comm, sigma_proto_resp): proving the correctness of the transfer.

Note

Once a user has participated in at least one transfer, their balance becomes “hidden”. This means that neither the transferred amount nor the updated balances of the sender and recipient are visible to external observers.

Withdraw

public entry fun withdraw_to_raw(
    sender: &signer,
    asset_type: Object<Metadata>,
    to: address,
    amount: u64,
    new_balance_P: vector<vector<u8>>,
    new_balance_R: vector<vector<u8>>,
    new_balance_R_aud: vector<vector<u8>>,
    zkrp_new_balance: vector<u8>,
    sigma_proto_comm: vector<vector<u8>>,
    sigma_proto_resp: vector<vector<u8>>
)

The withdraw_to_raw function allows a user to withdraw tokens from the protocol, transferring the passed amount from the available balance of the sender to the primary FA store of the recipient. This function enables users to release tokens while not revealing their remaining balances.

The withdrawn amount itself is publicly visible (as a u64), but the sender’s remaining balance stays hidden.

Caution

Attempting to withdraw more tokens than available will cause an error.

Rotate Encryption Key

public entry fun rotate_encryption_key_raw(
    sender: &signer,
    asset_type: Object<Metadata>,
    new_ek: vector<u8>,
    resume_incoming_transfers: bool,
    new_R: vector<vector<u8>>,
    sigma_proto_comm: vector<vector<u8>>,
    sigma_proto_resp: vector<vector<u8>>
)

The rotate_encryption_key_raw function modifies the user’s EK and re-encrypts the available balance R components with the new EK. The resume_incoming_transfers parameter controls whether incoming transfers are unpaused after the rotation.

To facilitate the rotation process:

1. The pending balance must first be rolled over and incoming transfers paused by calling rollover_pending_balance_and_pause. This prevents new transfers from altering the pending balance during the key rotation.
2. Then the EK can be rotated using rotate_encryption_key_raw, optionally resuming incoming transfers.

Caution

Key rotation requires incoming transfers to be paused. If they are not paused, the transaction will fail.

Normalize

public entry fun normalize_raw(
    sender: &signer,
    asset_type: Object<Metadata>,
    new_balance_P: vector<vector<u8>>,
    new_balance_R: vector<vector<u8>>,
    new_balance_R_aud: vector<vector<u8>>,
    zkrp_new_balance: vector<u8>,
    sigma_proto_comm: vector<vector<u8>>,
    sigma_proto_resp: vector<vector<u8>>
)

The normalize_raw function ensures that the available balance is reduced to 16-bit chunks for efficient decryption. This is necessary only before the rollover_pending_balance operation, which requires the available balance to be normalized beforehand.

All other functions, such as withdraw_to_raw or confidential_transfer_raw, handle normalization implicitly, making manual normalization unnecessary in those cases.

Note

All functions except rollover_pending_balance perform implicit normalization.

Caution

Calling a rollover_pending_balance when the available balance is not normalized will cause an error.

Pause/Unpause Incoming Transfers

public entry fun set_incoming_transfers_paused(
    owner: &signer,
    asset_type: Object<Metadata>,
    paused: bool
)

The set_incoming_transfers_paused function allows a user to pause or unpause incoming confidential transfers. When paused, other users cannot transfer tokens to this user’s pending balance.

This is primarily used during key rotation to ensure the pending balance remains empty while the rotation is in progress.

Auditors

The protocol supports auditors who can decrypt transfer amounts for compliance purposes. Auditors hold their own Twisted ElGamal keypair and receive encrypted copies of transfer amounts under their EK.

There are three types of auditors:

• Global auditor — set by governance, applies to all asset types.
• Asset-specific auditor — set per asset type by the asset creator.
• Effective auditor — the asset-specific auditor if set, otherwise the global auditor. This auditor is mandatory: if an effective auditor exists, all transfers must include ciphertexts for it.
• Voluntary auditors — additional auditors specified by the sender at transfer time.

Note

The effective auditor can decrypt both the transfer amount and the sender’s new available balance. Voluntary auditors can only decrypt the transfer amount.

View Functions

#[view]
public fun has_confidential_store(
    user: address, asset_type: Object<Metadata>
): bool

#[view]
public fun get_pending_balance(
    owner: address, asset_type: Object<Metadata>
): CompressedPendingBalance

#[view]
public fun get_available_balance(
    owner: address, asset_type: Object<Metadata>
): CompressedAvailableBalance

#[view]
public fun get_encryption_key(
    user: address, asset_type: Object<Metadata>
): CompressedRistretto

#[view]
public fun is_normalized(
    user: address, asset_type: Object<Metadata>
): bool

#[view]
public fun incoming_transfers_paused(
    user: address, asset_type: Object<Metadata>
): bool

#[view]
public fun get_effective_auditor(
    asset_type: Object<Metadata>
): Option<CompressedRistretto>

#[view]
public fun get_auditor_for_asset_type(
    asset_type: Object<Metadata>
): Option<CompressedRistretto>

#[view]
public fun get_global_auditor(): Option<CompressedRistretto>

Useful Resources

• Confidential Asset SDK
